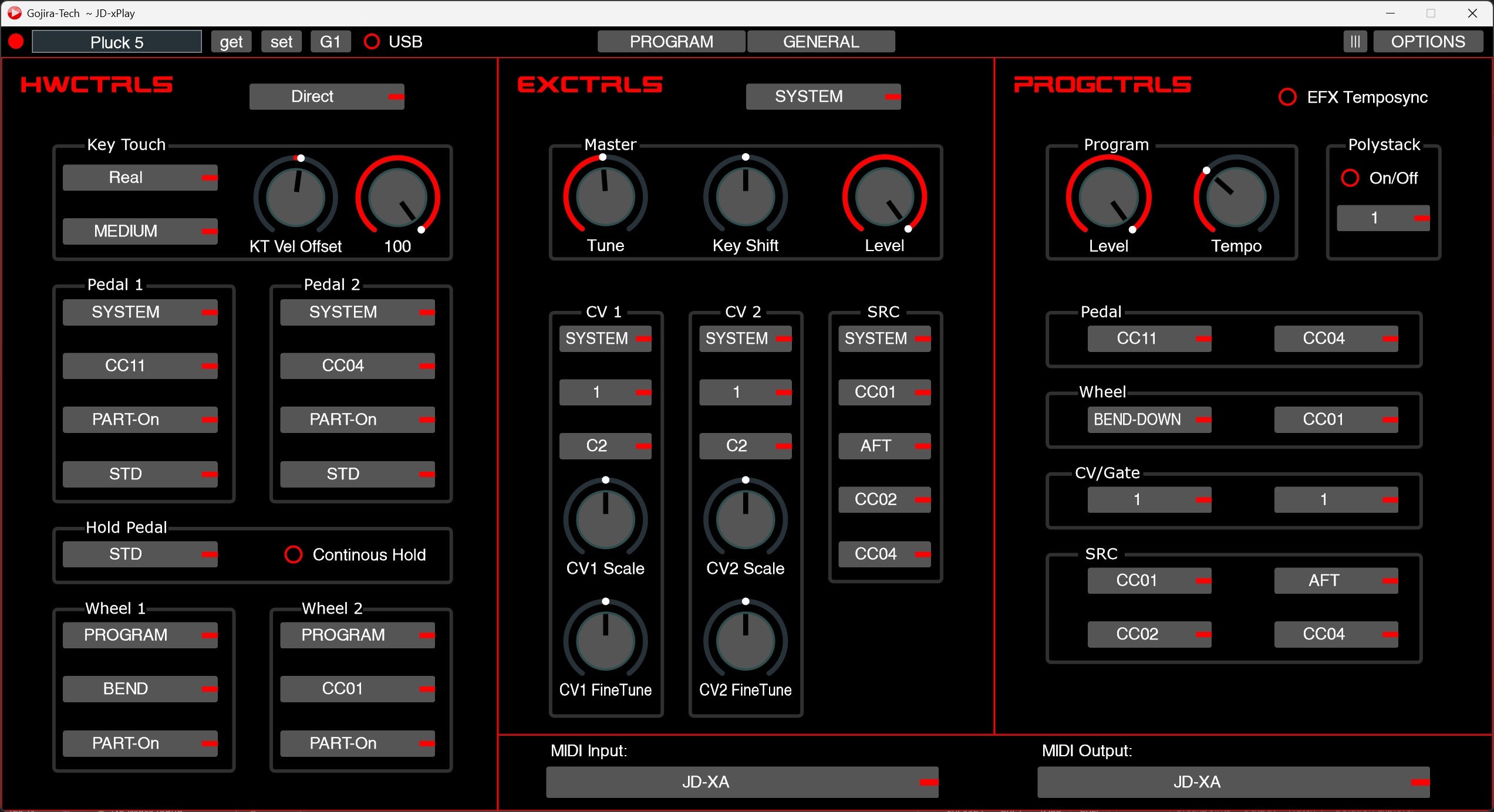

Program General Page

Here you can set hardware configurations for Key touch, Pedals 1 & 2, the hold pedal, Wheels 1 & 2 and the two CV connections. Midi settings for global and program specific can be defined along with program specific item such as EFX Temposync, Analog Polystack and program specific volume and tempo.

Program EFX Page

All program effects are available here plus access to the very powerful ‘Master EQ’ parameters. All Reverb, MIC and TFX options are available via dynamic menus and controls. If you change the TFX Ctrl knob on the synth or in the software then values are updated for the individual TFX parameters in the software, via an automatic sysex query to the synth.

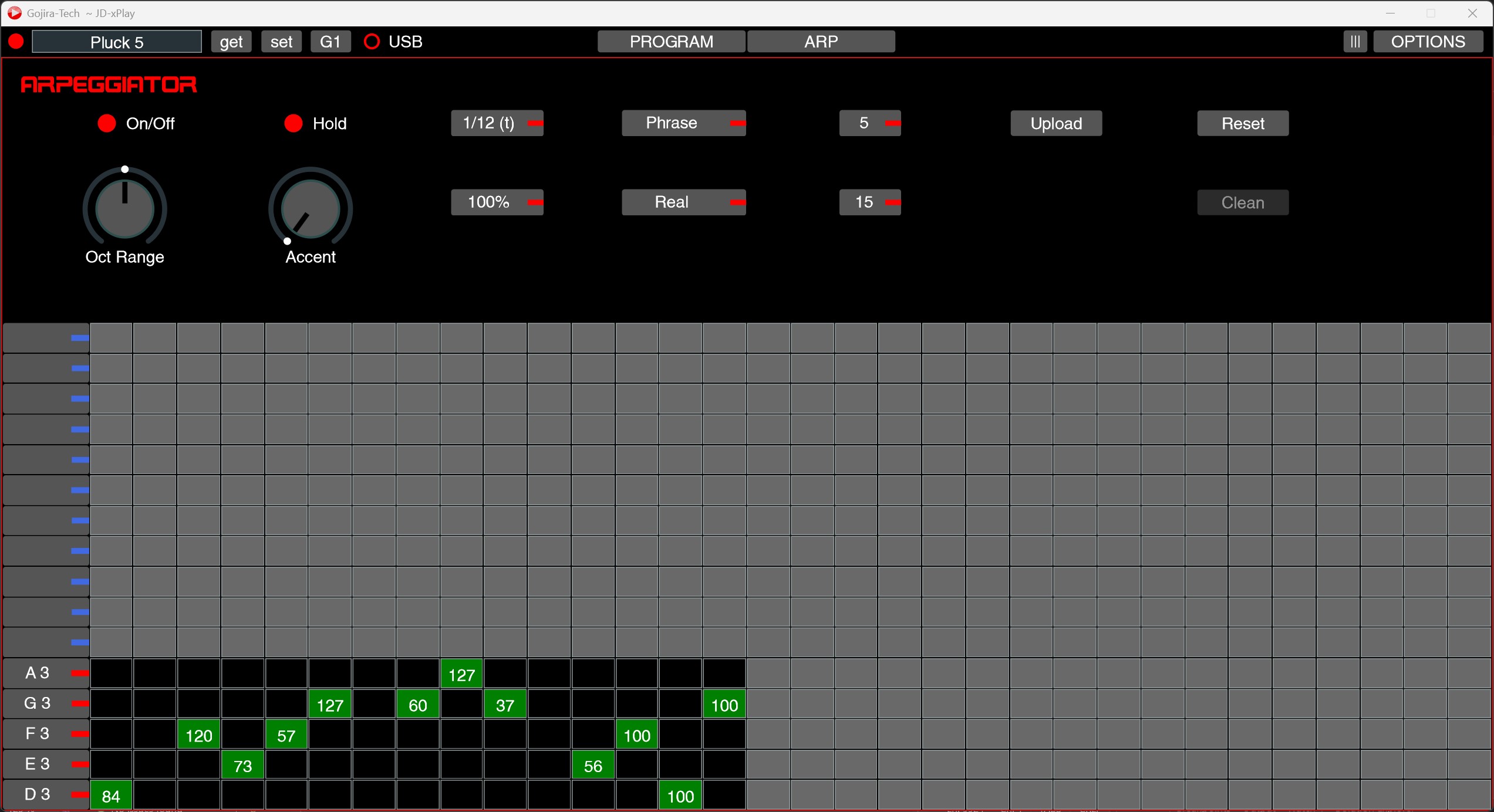

Program Arp Page

This page contains all basic Arpeggiator parameters plus a dynamic grid interface for creating custom phrases. The grid interface allows you to add or remove notes with far greater ease than using the synth directly. Enter the velocity for each note or a velocity of 128 in adjacent cells to easily create tied notes. A ‘Clean’ function orders the notes correctly when you have finished editing the phrase pattern. The 'Preset Manager' allows you to save Arp parameters, so creating and using complex Arp settings becomes simple.
